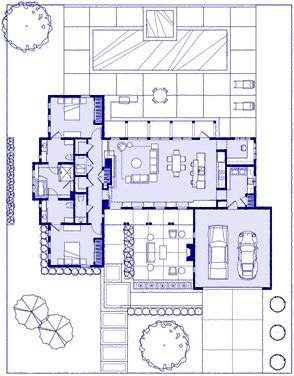

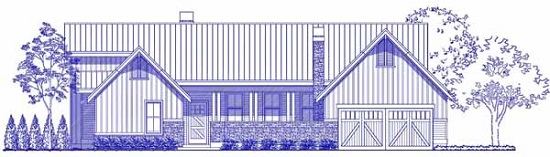

Courtyard Series 1915 – The Farmhouse – Standard Design
Plan Number: CYS-1915.O1
Click here for larger view
Design Comments

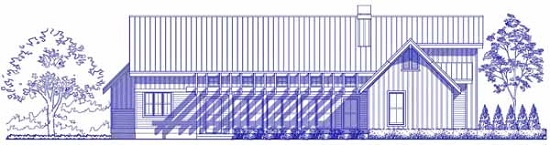

This home was designed with informal living in mind, maximizing the indoor/outdoor relationship. The plan also explores some alternate design solutions. The main Grand Living Area of the house with its high ceiling and abundance of windows floods the space with natural light. The transparency of this space ties the front courtyard and rear yard, visually expanding the interior in two directions. The design also has a covered front porch and a trellis in the rear that will assist in keeping the interior space shaded in the summer months. To promote outdoor entertaining and provide a focal point a fireplace is located in the semi-private front courtyard.
Based on various studies a new trend for His and Her Master Bedrooms is emerging. This plan addresses that small but growing trend by providing two identical master bedrooms with private vanities and a shared tub/shower room. As an alternative, the secondary master bedroom and vanity can be modified to function as a separate bedroom with a private bath.
Another design feature of the plan is built-in storage space. Between the windows facing the front courtyard, this plan has two storage closets and full-height storage/bookshelves. Additionally, built-in storage can be found in both vanities, the tub/shower room and in the laundry/mud room.
Basics |
|
| Levels | 1 |
| Bedrooms | 2 |
| Baths | 2 ½ |
| Garage Stalls | 2 |
Square Footage |
|
| Living Area | 1,915 SQ. FT. |
| With Basement | 3,830 SQ. FT. |
Dimensions |
|
| Width | 72′-4″ |
| Depth | 59′-0″ |
| Height | 24′-3″ |
Room Sizes |
|
| Great Room | 14′-0″x14′-6″ |
| Dining | 10′-0″x14′-6″ |
| Laundry/Mud Room | 8′-2″x12′-0″ |
| Office/Crafts Area | 8′-2″x7′-6″ |
| Master Bedroom ‘A’ | 13′-6″x12′-0″ |
| Master Bedroom ‘B’ | 13′-6″x12′-0″ |
Ceiling Height |
|
| Standard | 9′-0″ |
| Great Room | 12′-0″ |
| Master Bath | 12′-0″ |
Features
- Open plan design
- Single level living
- Front entry accessible ramp
- Front porch and rear patio
- Great Room and front courtyard fireplaces
- His-and-Hers Master Bedrooms
- Multiple storage areas
- Attached two car garage
Option Packages Included
In addition to the standard design package you will receive Optional plans for a Flex Room, a Third Bedroom with private bath, an Office with private entry, and a Screen Porch. This all inclusive package allows you to build one of the options immediately or in the future. Should you never add the extra room and sell your home you can use the room plans as a selling tool (Note: home should be sited within property setbacks to include area for room addition).

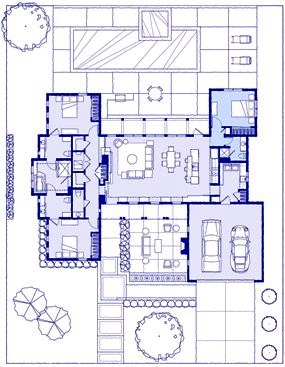

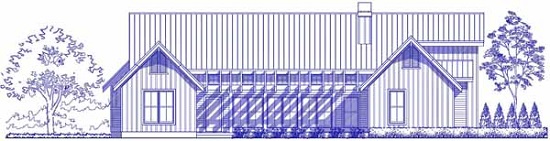

With Third Bedroom
Click here for larger view
Design Comments
Should you select to go with His and Her Master bedrooms you may find the need for an additional bedroom. The Third Bedroom option can serve as a child’s bedroom, a guest bedroom or a bedroom for an elderly parent. The bedroom has its own private bath and also has close proximity to the rear yard.
Basics |
|
| Levels | 1 |
| Bedrooms | 3 |
| Bath3 | 2½ |
| Garage Stalls | 2; |
Square Footage |
|
| Living Area | 1,915 SQ. FT. |
| Bedroom 3 | 207 SQ. FT. |
| Total Living Area | 2,122 SQ. FT. |
| With Basement | 4,037 SQ. FT. |
Dimensions |
|
| Width | 72′-4″ |
| Depth | 59′-0″ |
| Height | 24′-3″ |
Room Sizes |
|
| Great Room | 14′-0″x12′-9″ |
| Dining | 10′-0″x10′-0″ |
| Laundry/Mud Room | 8′-2″x12′-0″ |
| Master Bedroom ‘A’ | 13′-6″x12′-0″ |
| Master Bedroom ‘B’ | 13′-6″x12′-0″ |
| Bedroom #3 | 13′-6″x11′-0″ |

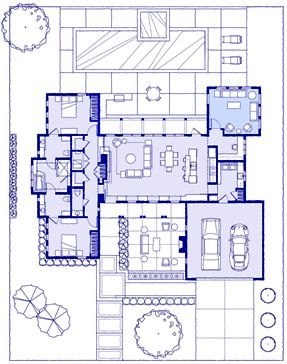

With Flex Room
Click here for larger view
Design Comments
The Flex Room option offers a few opportunities depending on your needs. The space with its abundance of windows is ideal for a Four Season Porch (Sunroom). It can also be used as a Media Room, a Hobby Room,or as a Study.
Square Footage |
|
| Living Area | 1,915 SQ. FT. |
| Flex Room | 248 SQ. FT. |
| Total Living Area | 2,163 SQ. FT. |
| With Basement | 4,078 SQ. FT. |
Dimensions |
|
| Width | 73′-4″ |
| Depth | 59′-0″ |
| Height | 24′-3″ |
Room Sizes |
|
| Great Room | 14′-0″x12′-9″ |
| Dining | 10′-0″x10′-0″ |
| Laundry/Mud Room | 8′-2″x12′-0″ |
| Master Bedroom ‘A’ | 13′-6″x12′-0″ |
| Master Bedroom ‘B’ | 13′-6″x12′-0″ |
| Flex Room | 15′-6″x14′-0″ |

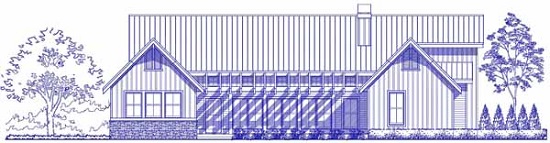

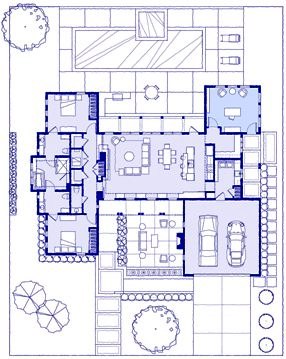

With Office
Click here for larger view
Design Comments
With a private entrance the Home Office option is able to accommodate clients without having to enter the home. With an abundance of windows the office takes advantage of natural light.
Basics |
|
| Levels | 1 |
| Bedrooms | 2 |
| Baths | 2 ½ |
| Garage Stalls | 2 |
Square Footage |
|
| Living Area | 1,915 SQ. FT. |
| Office | 264 SQ. FT. |
| Total Living Area | 2,179 SQ. FT. |
| With Basement | 4,094 SQ. FT. |
Dimensions |
|
| Width | 72′-4″ |
| Depth | 59′-0″ |
| Height | 24′-3″ |
Room Sizes |
|
| Great Room | 14′-0″x14′-6″ |
| Dining | 10′-0″x14′-6″ |
| Laundry/Mud Room | 8′-2″x12′-0″ |
| Master Bedroom ‘A’ | 13′-6″x12′-0″ |
| Master Bedroom ‘B’ | 13′-6″x12′-0″ |
| Office | 16′-6″x14′-0″ |

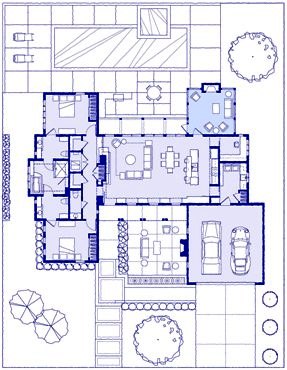

With Screened Porch
Click here for larger view
Design Comments
In those regions where insects are a nuisance the Screen Porch option allows you to enjoy the outdoors without uninvited guests. The twelve foot high ceiling in this design makes the space feel more open and less defined. The screen porch includes a fireplace that provides an alternative locaton (and insect free) space from that of the front courtyard fireplace.
Basics |
|
| Levels | 1 |
| Bedrooms | 2 |
| Baths | 2 ½ |
| Garage Stalls | 2 |
Square Footage |
|
| Living Area | 1,915 SQ. FT. |
| With Basement | 3,830 SQ. FT. |
| Screened Porch | 205 SQ. FT. |
Dimensions |
|
| Width | 72′-4″ |
| Depth | 59′-0″ |
| Height | 24′-3″ |
Room Sizes |
|
| Great Room | 14′-0″x14′-6″ |
| Dining | 10′-0″x14′-6″ |
| Laundry/Mud Room | 8′-2″x12′-0″ |
| Office/Crafts Area | 8′-2″x7′-6″ |
| Master Bedroom ‘A’ | 13′-6″x12′-0″ |
| Master Bedroom ‘B’ | 13′-6″x12′-0″ |
| Screened Porch | 13′-9″x13′-5″ |
Pricing
Please read the LICENSE AGREEMENT as you proceed with purchase. By purchasing plans you are agreeing to the terms of the License Agreement.
PDF Construction Set: $2,000.00
AutoCAD Construction Set: $2,750.00
Available options:
Foundation Type: Slab-on-grade / Full basement
Reverse Reading: Yes / No
Call us at (612) 360-7449 or email us to order
